German manufacturer of marine reduction and reverse – reduction gearboxes up to 30.000kW for workboats, fast ships and fast ferries since 1955 with its experience as a manufacturer extending to nearly 140 years.
Reintjes gearboxes are characterized by customized production, optimum efficiency and a high level of reliability and persistence. Besides the development of standardized marine gearboxes, Reintjes specializes in customized drive solutions for special applications. The continuous improvement of expert knowledge combined with constant development of the product range enables Reintjes to make individual and complex customer requirements a reality.
As the official distributor of Reintjes for Greece, TK Intertrade can guide you in selecting the optimal gearbox for your intended use and provide you with the spare parts for any service or maintenance job, as well as, perform inspections, repairs and overhauls both on board your vessel and in our authorized service station facilities.
More info: www.reintjes-gears.de
The new WF series fulfills the requirements for modern propulsion concepts with increased input speeds and higher reduction ratios.
The new WF range consists of nine modular designed sizes with reduction ratios up to 8:1 with highest modularity for quick and easy configuration.
Fit For Future
The standardized PTI/PTO options allows retrofit of auxiliary drives or even an upgrade to a hybrid system. The REINTJES multi-plate clutch ensures trouble-free operation with fast and smooth clutch control.
The REINTJES gearboxes of the WAF/LAF, SVA/SVAL and DLG series have been specially developes for heavy duty applications in workboatds such as tugs, trawlers, inland waterwat vessels, ferries, tankers, offshore vessels, container vessels and special-purpose ships with coparably high demands. Their outstanding features are optimal efficiency, high reliability and a long services life. In addition, the new small gearbox WF series for 500 – 1050HP have been specially developed for work boats such as tugs, fishing vessels, inland waterway crafts, ferries and special-purpose ships with similarly high performance demands.
Technical Information:

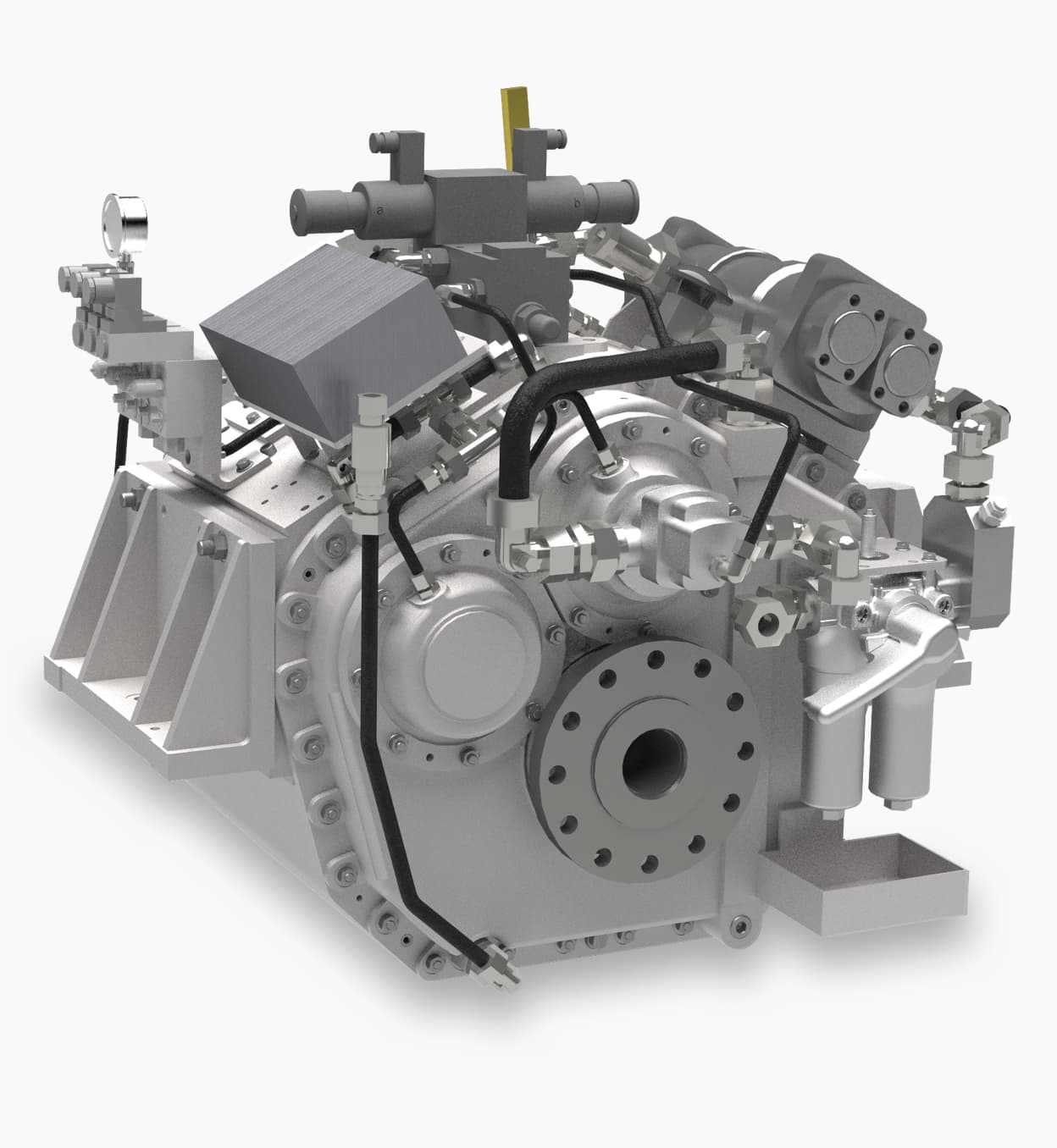

The WVS/WLS series convince by low weight due to their weight-optimized design and optimal running characteristics. These factors make the hydraulically operated gearboxes the ideal propulsion unit – whether for fixed pitch propellers, controlable pitch propellers or waterjets. These gearboxes have been specially designed for use in fast naval craft, yachts and other fast vessels.
Brochures:
WVS / WLS 234-430 WVS / WLS 720-2240
The REINTJES gearboxed type VLJ have a compact, low-weight design as well as optimal running characteristics, which make the hydraulic actuated VLJ reduction gearboxes an essential part of optimally designed waterjets.
Brochures:
The latest addition to the production program are the Down Angle gearboxes of type WVSA with a space saving design, 8 to 10 degrees down angle, hydraulically operated clutches, beveloid gears on input and output shaft, reductions 1.5 to 4 and laid out for outputs up to 4900kW.
Brochures:
The ever-increasing environmental restrictions like maneuvering operations in city near harbor areas or in areas with very stringent emission requirements are asking for an alternative drive solution. REINTJES is using a standard gearbox for the REINTJES Hybrid System; means it integrates an electric motor onto its gearbox. This enables the ship operator to use its drive train with electric motor only while the main diesel engine is stopped and thus reduce the exhaust emissions significantly and use the diesel engine while in transfer mode.
